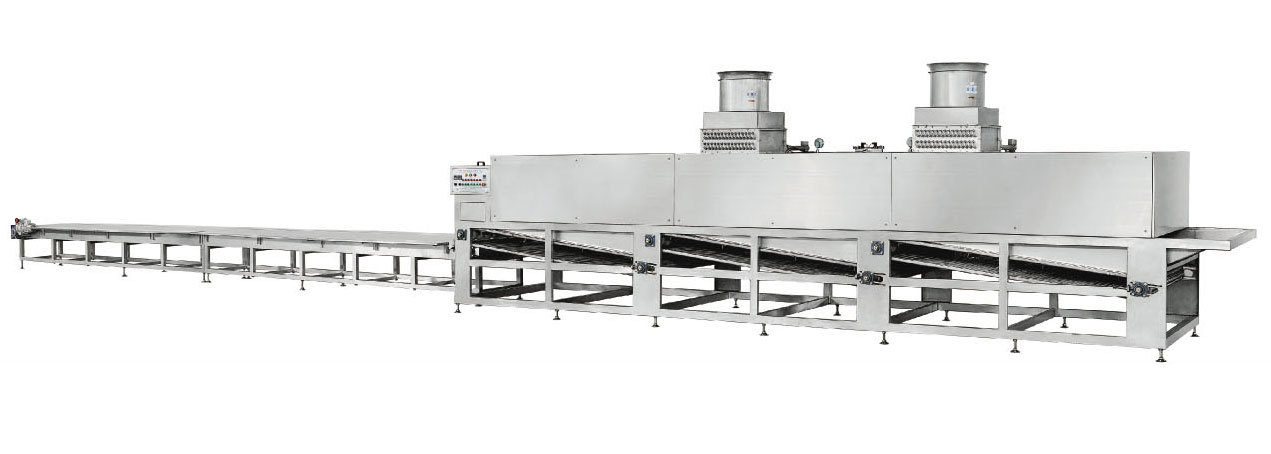

BSSJ-1500 PASTEURIZATION LINE
Summary:
This machine use pasteurization process. Be used for sterilization treatment after jelly and yoghurt etc after the flling and sealing process. Machine using SUS304 material manufactur,It can be for CDF and CFG etc series production line Use together.Achieve efficient, safe, and hygienic production purposes . Production flow: For feeding system- +Sterilize-→Cooling machine→Dryer machine (AIlI is continuous runing and Automatic control) Output: 1 -4T /h(According to disinfection time 15- 30 min)
Mobile:
Details
产品特点
Features
This machine use pasteurization process. Be used for sterilization treatment after jelly and yoghurt etc after the flling and sealing process. Machine using SUS304 material manufactur,It can be for CDF and CFG etc series production line Use together.Achieve efficient, safe, and hygienic production purposes . Production flow: For feeding system- +Sterilize-→Cooling machine→Dryer machine (AIlI is continuous runing and Automatic control) Output: 1 -4T /h(According to disinfection time 15- 30 min)
主要技术参数
MAIN TECHNICAL DATA
|
型号 Model |
BSSJ-1500 |
|
产量 Output |
1- 4T/h |
|
电压 Voltage |
380V 50Hz |
|
总功率 Power |
1 8KW |
|
控温方式 Temperature Control Type |
机械式补偿闭环自动控温 |
|
速度调节 Speed Control |
TRANSDUCER |
| 外型尺寸 Size(m) | 29X1.6X2.2 |
| 整机重量 Weight | 5T |
|
蒸汽用量 Steam |
0.5-0.8T/h |
风干机
DRYER MACHINE
本机为密闭式强力干燥适用于包装后的大型风干干燥。机器采用SUS304材料制造,高效益,坚实耐用,还适合于干燥其他种类的食品和蔬菜.

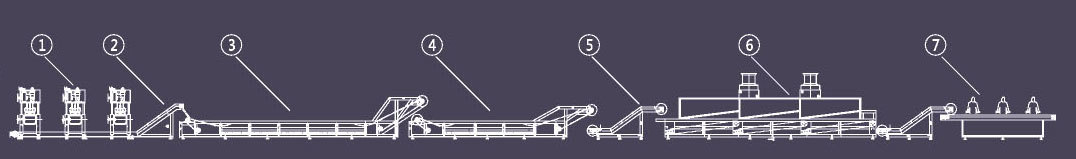

主要配置:
Main configuration:
1.充填封口机
1.Filling And Sealing Machine
2.输送装置
2.Conveying Device
3.热水槽
3.Heating Trough
4.冷水槽
4.Cooling Trough
5.e输送装置
5.Conveying Device
6.烘干机
6.Dryer machine
7.包装生产线
7.Packing line
