CFD-SF-6 AUTOMATIC SERVO FILLING AND SEALING MACHINE

Category:

Summary:

All the systems of the machine are automatic such as cup feeding, dust arrester , coconut filling, liquid filling, film putting(roll film and single film), date printing, sealing, photocell checking, cutting and cup drop out.. The machine is suitable for filling and packing all kinds of yoghourt, milk, ice-cream, juice, beverage and soy sauce. The machine with PLC and human-computer interface control system, with empty cup checking system, with 1million level FFU, with UV lamp for sealing film sterilize, with unattached temperature control. The chain rail are made of special material for good using. The machine with less noises when it working . orientation and the filling capacity are nicety, sealing quality best.

Mobile:

+86-13802715588

Related products

Messages

Details

产品特点
Features

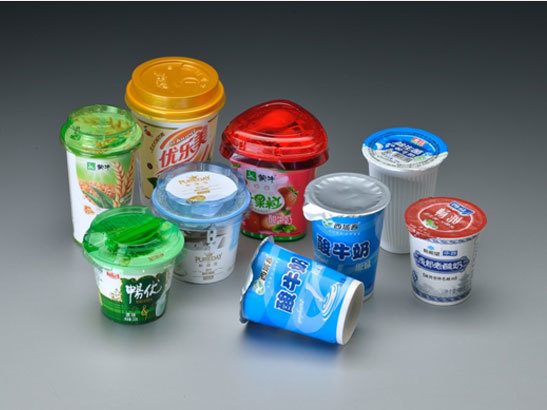

The machine is suitable for filling and packing all kinds of yoghourt, milk, ice-cream, juice, beverage and soy sauce.

The machine with PLC and human-computer interface control system, with empty cup checking system, with 1million level FFU, with UV lamp for sealing film sterilize, with unattached temperature control. The chain rail are made of special material for good using.

The machine with less noises when it working . orientation and the filling capacity are nicety, sealing quality best.

主要技术参数

MAIN TECHNICAL DATA

生产量output	8500pcs/hr
容量 filling capacity	100—350ml
使用电源power supply	380V 50Hz
耗气量air consumption	0.8㎥/min
整机功率power	10.5KW
整机重量weight	3T
外型尺寸size(m)	4.8x1.1x2.4
